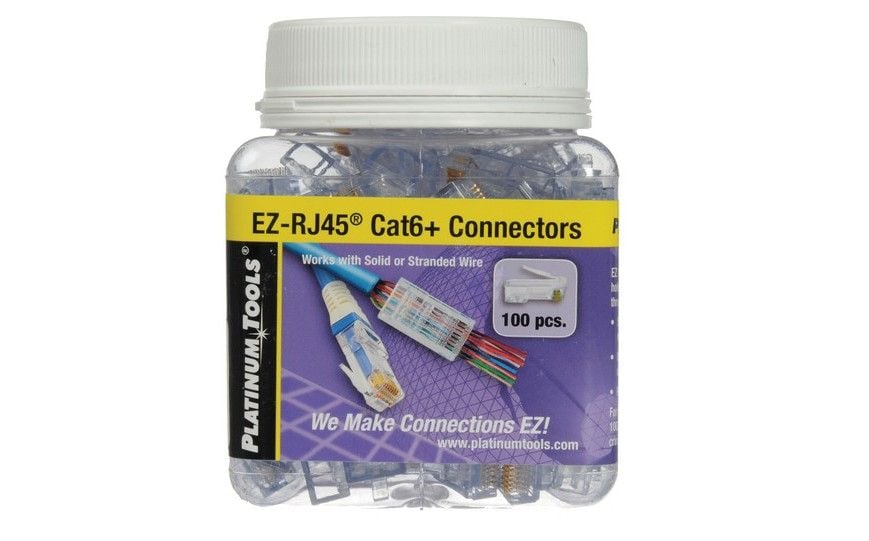

Platinum Tools 202010J EZ-RJ45 Cat6+ Connector 100 pk Jar

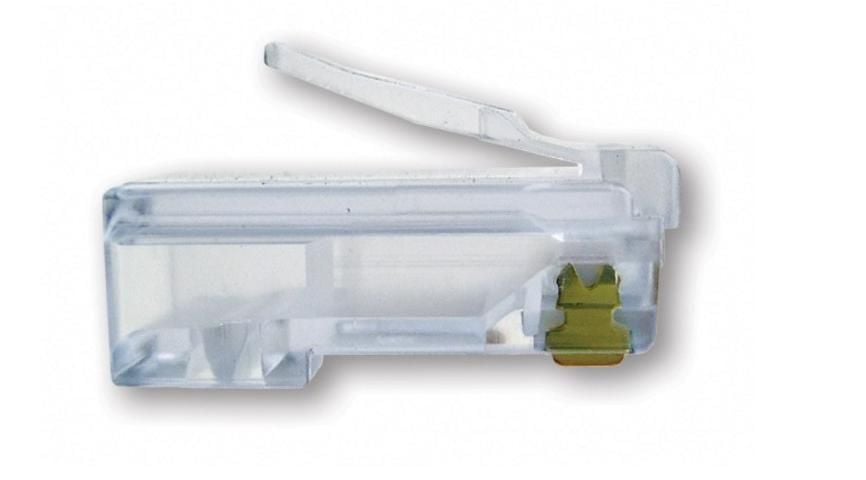

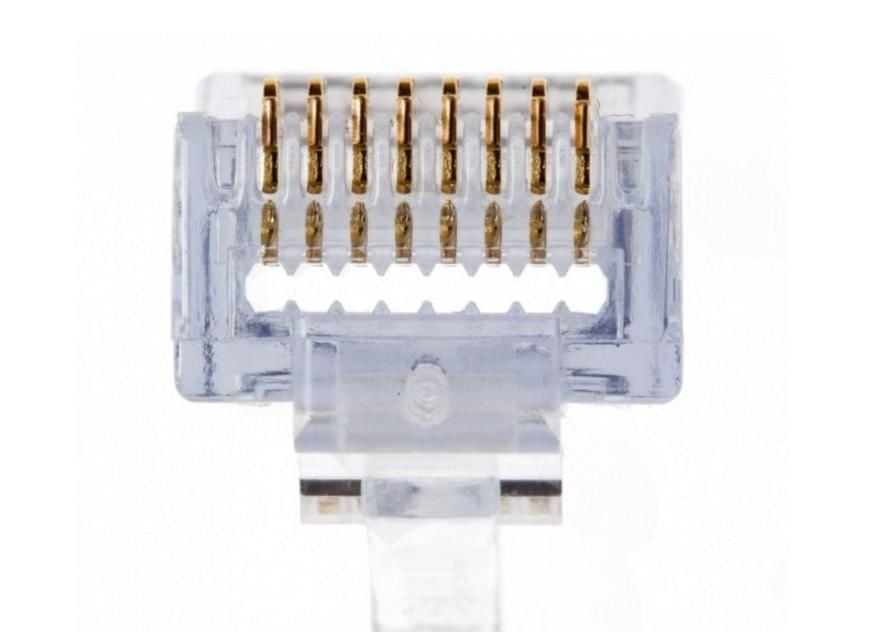

The 202010J from Platinum Tools is an EZ-RJ45 Cat6+ Connector, 100 pc, Jar. The new patented EZ-RJ45 Cat 6+ Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized, Crimp with the patented EZ-RJ45 Crimp Tool crimps and trims in one cycle. (See Part Number 100 004 or 100 054 EZ-RJPRO HD).

Platinum Tools 202010J EZ-RJ45 Connector Features

• For use in CAT6 compliant data networks: Designed to meet the high standards of modern networking.
• Category 6 performance per EIA/TIA B.2: Ensures reliable and efficient data transmission; FCC compliant, UL rated, and RoHS compliant for safety and environmental standards.
• EZ to verify wire sequence: Simple one-piece design eliminates the need for bars or liners, streamlining the installation process.
• Works with solid or stranded wire: Versatile compatibility makes this connector suitable for various installation scenarios.
• Faster terminations with reduced scrap: Optimizes efficiency in wiring installations, saving time and resources.
• Max Cable OD: 6.60mm (0.260"), ensuring a secure fit for a variety of cables.
• Max Insulated wire OD: 1.041mm (0.041"), compatible with a wide range of wire types.
• TAA Compliant: Meets Trade Agreements Act requirements for compliance in federal procurement.

Detailed Specifications for Platinum Tools 202010J
