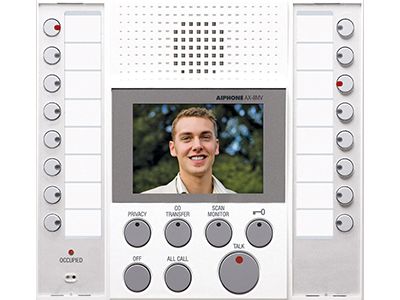

The AX-8MV-W is a video/audio master station from Aiphone which is capable of an additional 7 master station call capacity for additional convenience to the operator. The AX-8MV-W master station comes with CO transfer, a door release button, a color 3.5” TFT video monitor, 8 x master station channels, as well as selective calling, VOX hands-free communication, and 8 substation/door channels. The AX-8MV-W master station also features a 2 gang wall mount, call tone and LED annunciation, brightness/contrast video adjustments, 525 scanning lines, plus an option connector, and a white colored ABS resin housing. This master station is easy to operate, and comes easy to install which can help save money and time.
- Wiring hub for AX system using CAT-5e cable
- Controls all functionality of AX system
- 4 Master station ports (RJ45)
- 8 Door / sub station ports (RJ45)
- 2 24V DC power supply input terminals
- 8 Door release dry contacts (24V AC/DC 500mA)
- 2 BNC composite video outputs and video switching triggers
- Outputs for AX-320C add-on exchanges to support the maximum capacity of 104 doors (3 AX-320C’s max.)
- CO Line transfer output to Viking K-1900-5 programmable auto-dialer
- Rack mountable
- Programmable functionality via supplied software
- Includes USB to serial adaptor and gender changer, software program and Installation & Operation Manual on CD, and QuikStart Guide
