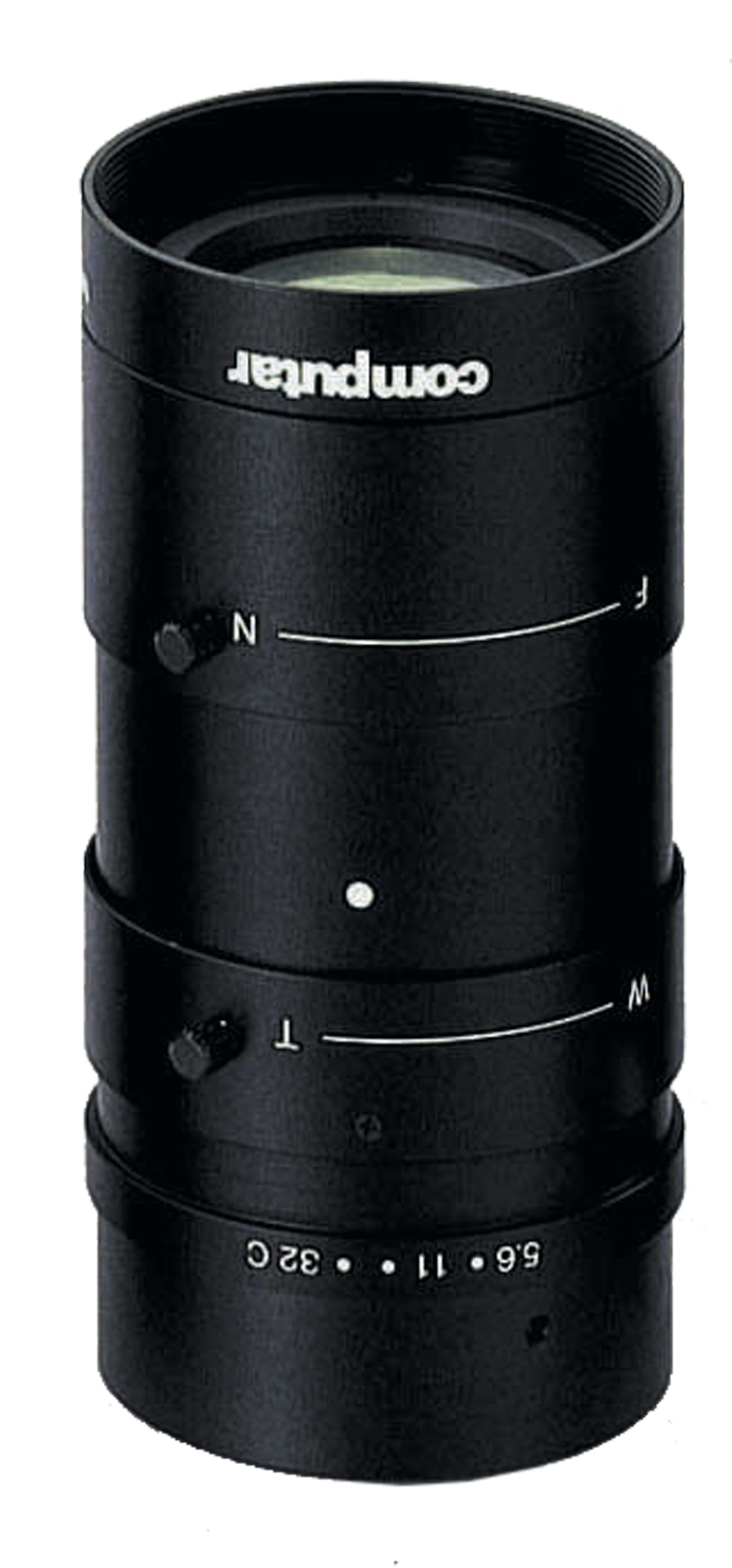

Model MLH-10X is a 1/2-inch C-Mount 10X macro zoom lens designed for visual aid applications. It has an approximate working distance of 4" - 24" and can be used for a variety of close up applications including inspection and documentation. Iris aperture of f5.6 - 32C.
- For 1/2-inch format cameras
- C-mount lens
- Max Magnification 0.084~0.84Xmm
- Iris Range: F5.6 ~ 32C
- Max. Aperture Ratio: 1:5.6
- Down Angle View: 21.6 ~ 4.5 Degrees
- Horizontal View: 18.0 ~ 3.6 Degrees
- Vertical View: 13.8 ~ 2.7 Degrees
- Max. Image Format: 6.4mm x 4.8mm
- Dimensions: 48 x 98.5mm
